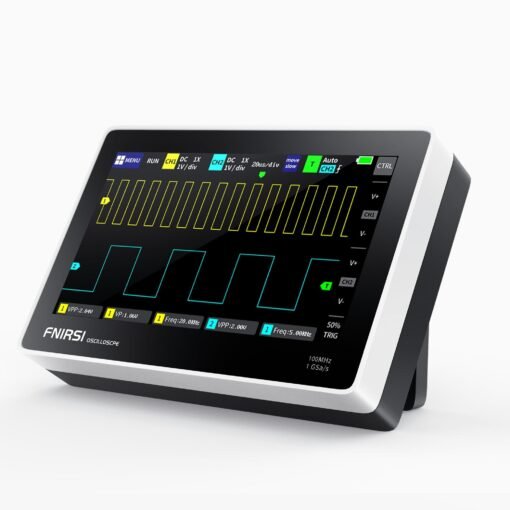

FNIRSI® 1013D Dual Channel Touchable Panel Oscilloscope

Price range: $119.99 through $129.99

Style

Clear

Description
Reviews (0)

The FNIRSI-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800×480 touchscreen provides easy control with one-key AUTO function for quick waveform display.

It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.

Features

2 Channels
Portable Handheld Tablet Oscilloscope
1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
100MHZ * 2analog bandwidth
7″ TFT LCD Touch Screen
Complete trigger function (single/normal/automatic).

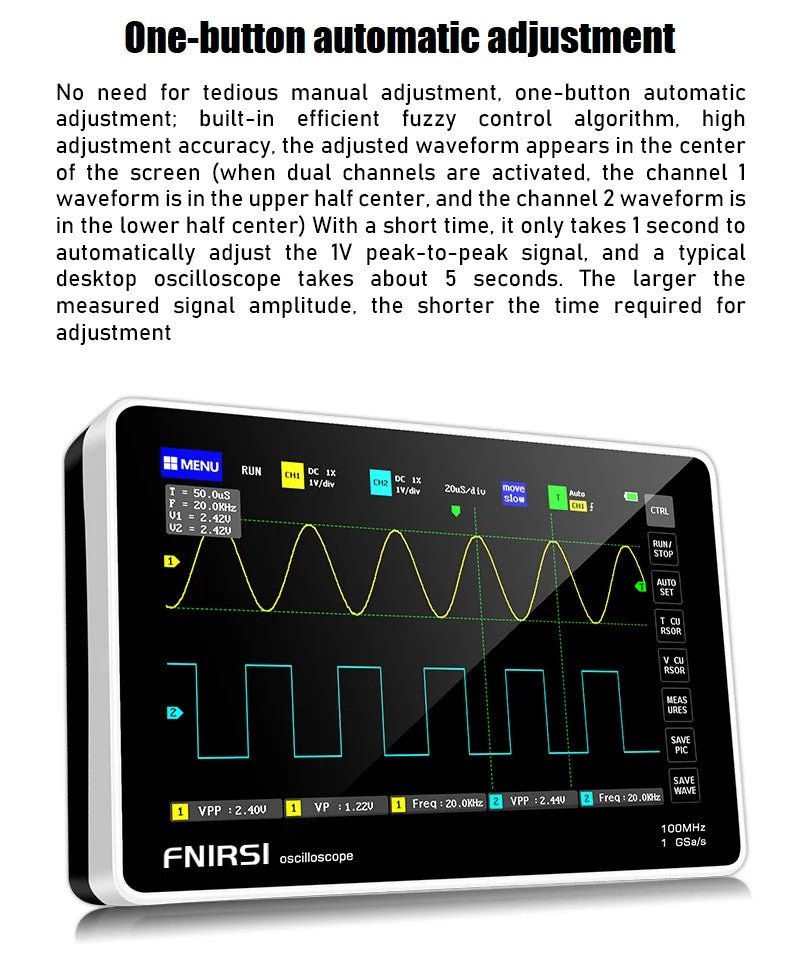

One-button AUTO and adaptive trigger (25%, 50%, 75%).
Versatile usage for both periodic analog and aperiodic digital signals.
high-voltage protection module.
1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V
Powerful Waveform Picture Manager.
One-key Screenshot and Saving.
Cursor measurement function.
Powerful Waveform Picture Manager.
Lissajous Graphic Display & FFT Viewing.
USB Picture Export
Ideal for both periodic analog and aperiodic digital signals.
6000mah battery, continuous usage for 4 hours
Targeting the maintenance industry and the research and development industry.

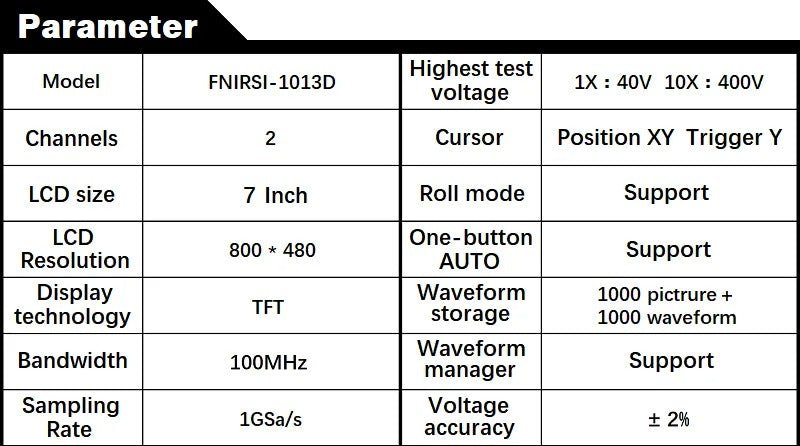

Specifications

Brand

FNIRSI

Model

1013D

Channels

2

Display

7 inch 800*480 Pixels

Bandwidth

100MHz

Sampling Rate

1GSa/s

Rise Time

<3nS

Storage Depth

240 Kbit

Timebase

50S~10ns

Vertical Sensitivity

50mV-500V

Input Resistance

1MΩ

Trigger Mode

Single / Normal / Auto

Trigger Edge

Rising / Falling

Coupling

AC/DC

Highest Test Voltage

1X:40V 10X:400V

Cursor

Position XY / Trigger Y

Roll Mode

Support

One-Button AUTO

Support

Waveform Manager

Support (1000 Pic + 1000 Waveform)

Voltage Accuracy

±2%

Frequency Precision

±0.01% High Precision

Parameter

12 Kinds in Total

Power Supply

6000mah Lithium Battery

Standby

4 Hours

Extension

USB Export

Charging

Type-C 5V 2A/3A/4A
