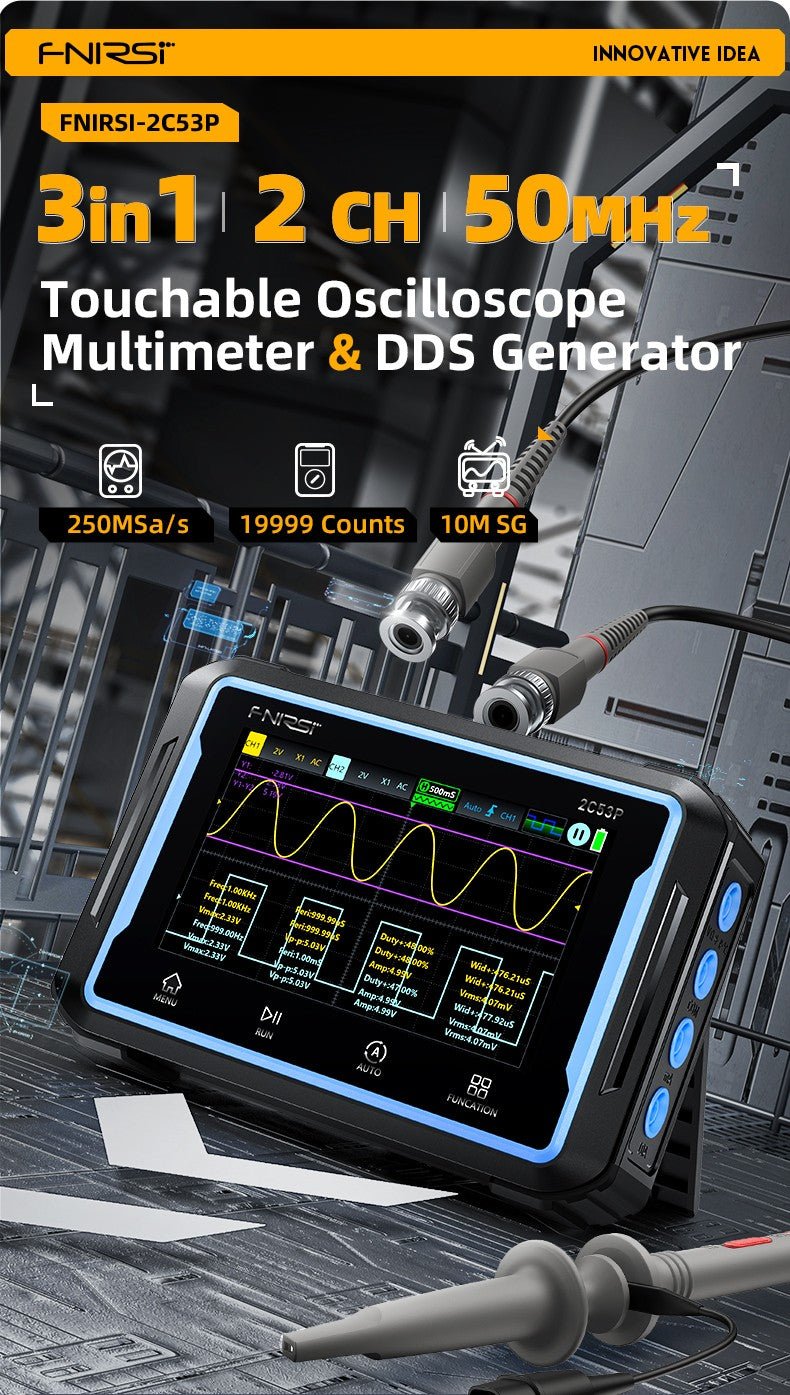

FNIRSI® 2C53P 3-in-1 Dual Channel Tablet Oscilloscope + Multimeter + Function Generator

Original price was: $190.99.Current price is: $89.99.

100 in stock

Description
Reviews (0)

FNIRSI 2C53P is a dual-channel digital oscilloscope with comprehensive functions and high practicality. This device has 3 major functions:

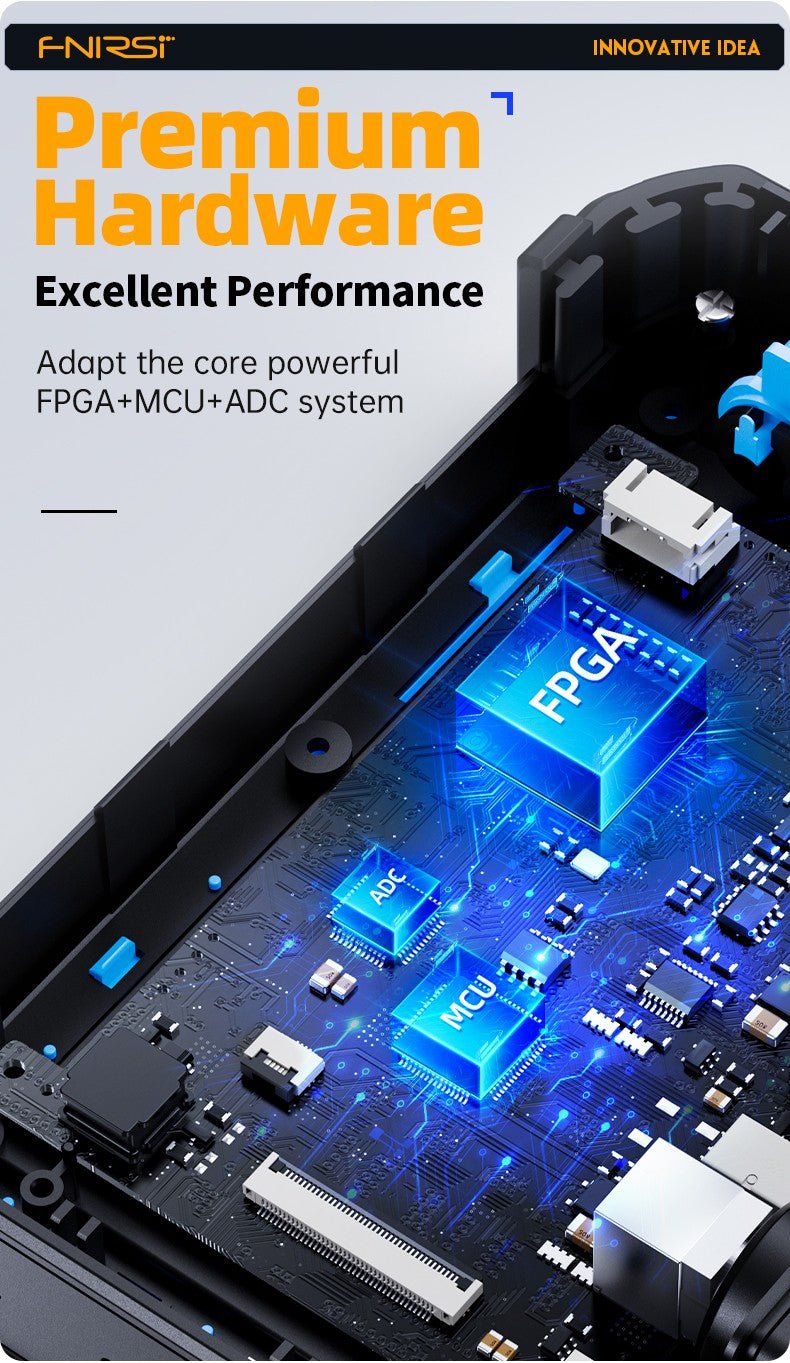

1. The oscilloscope adopts FPGA+MCU+ADC hardware architecture, has a sampling rate of 250MS/s, an analog bandwidth of 50MHz, and supports a peak voltage measurement of ±400V; It supports waveform screenshots, saving, and viewing;

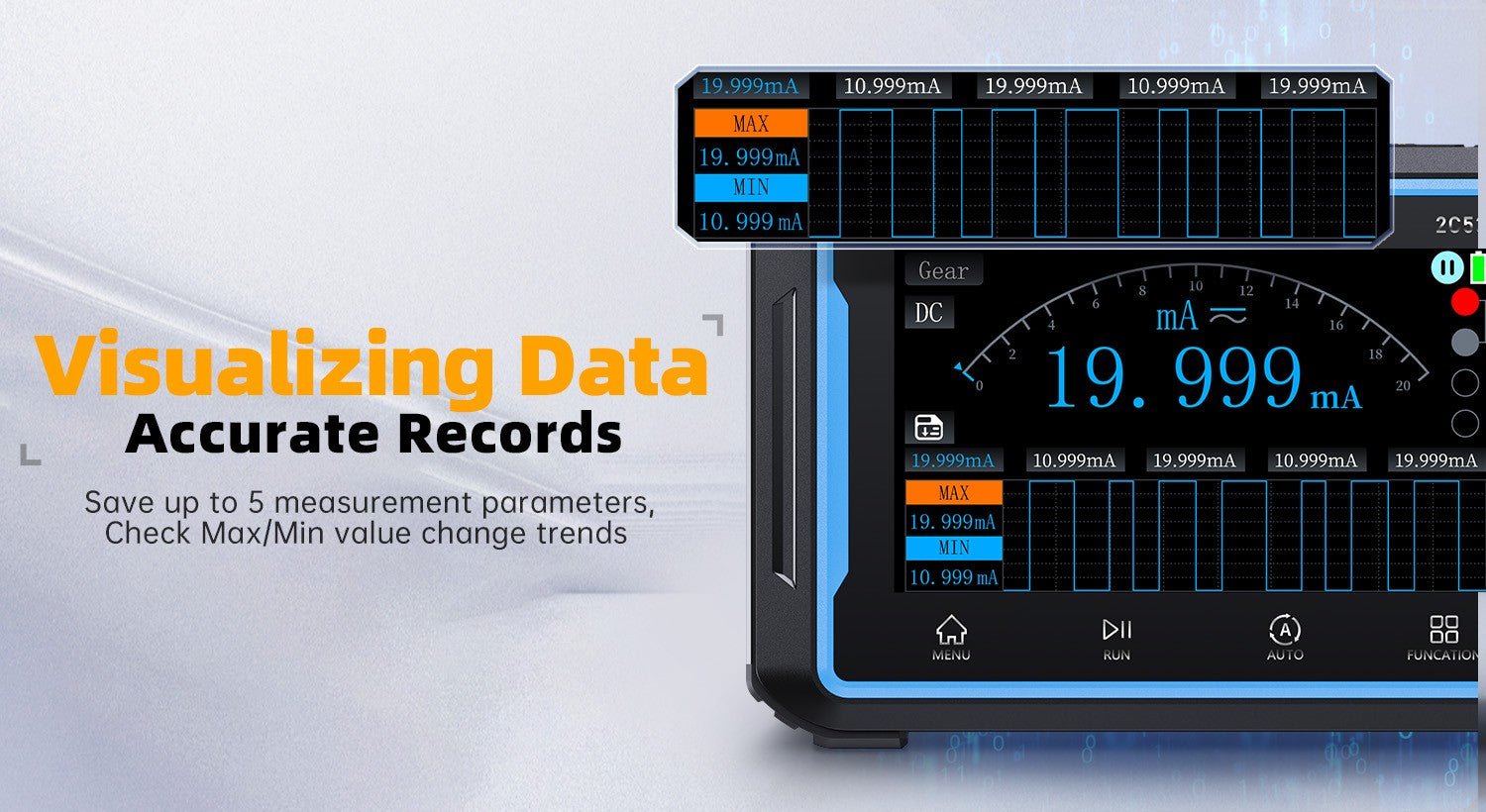

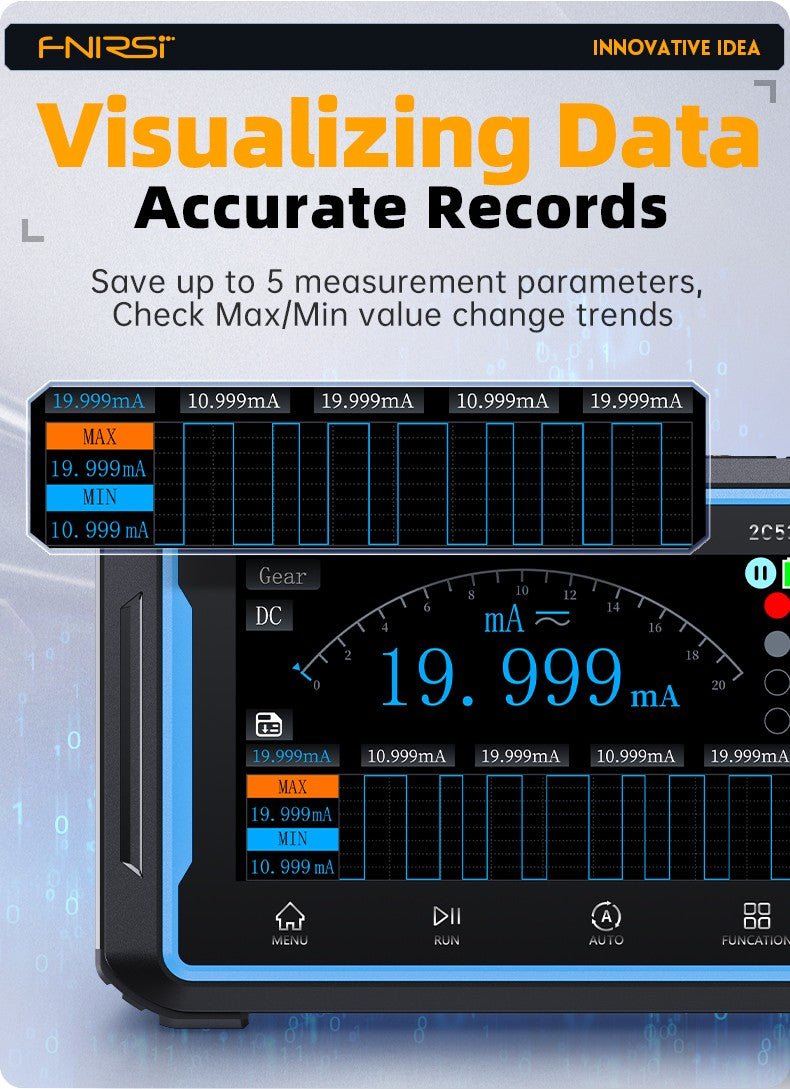

2. Built-in 4.5-digit 19999-point true RMS multimeter, supports AC and DC voltage and current measurements;

3. The built-in function signal generator can output 12 kinds of function signals, with a maximum output frequency of 10MHz, and the output frequency, amplitude, and duty cycle are adjustable.

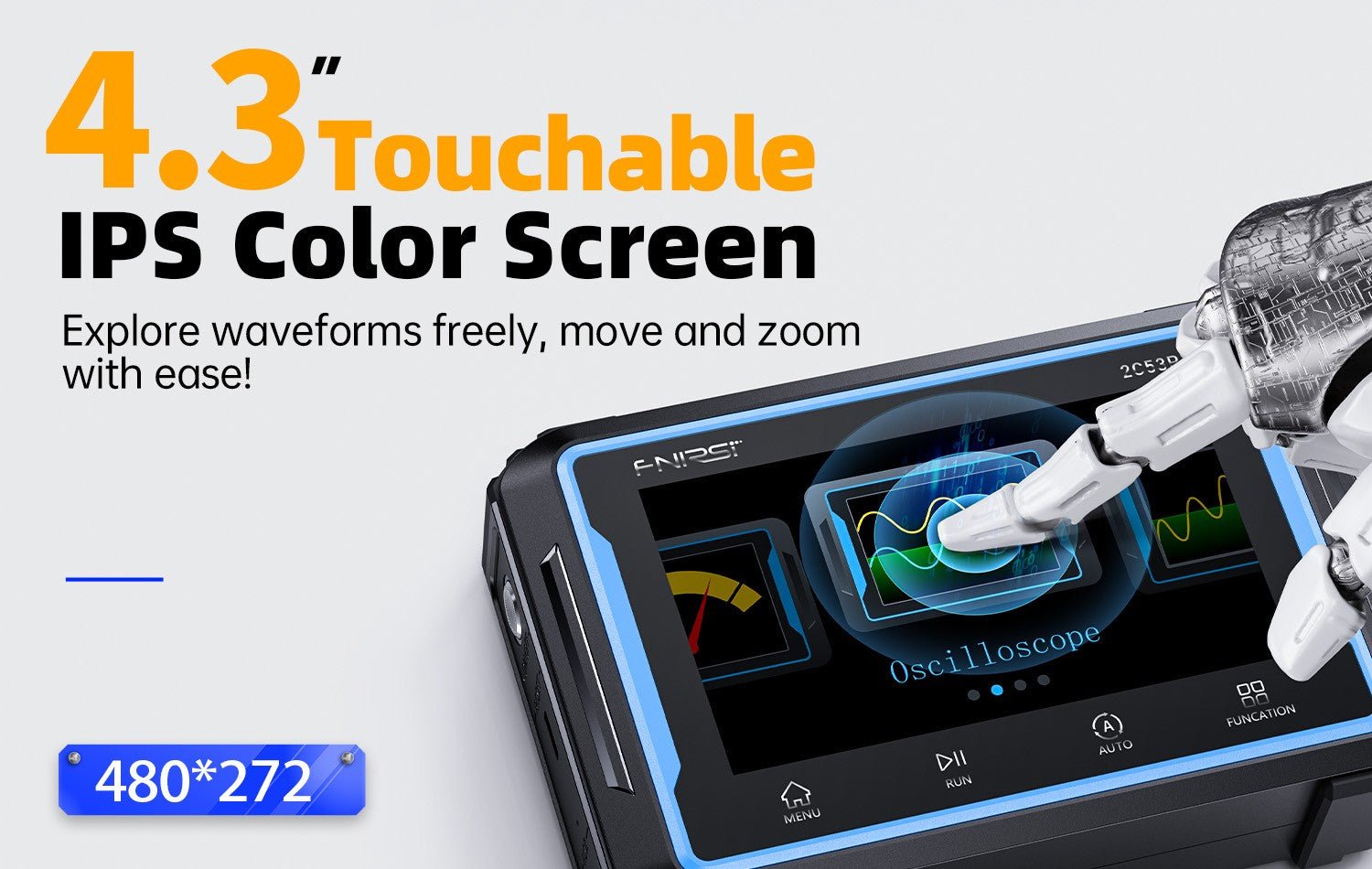

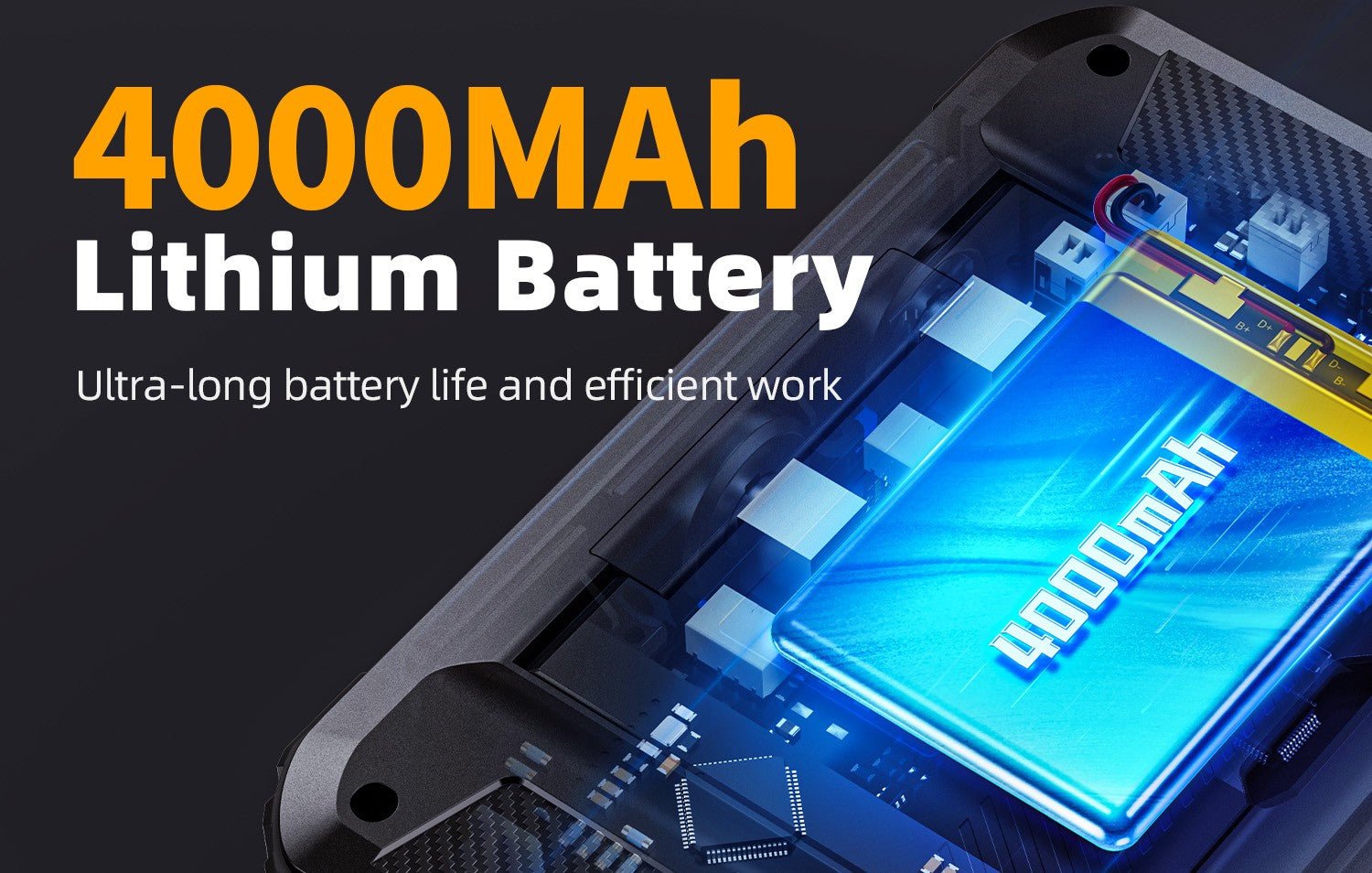

It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery which makes standby time up to 4 hours.

It is an ideal multifunctional instrument for electronic maintenance personnel and electronic major students.

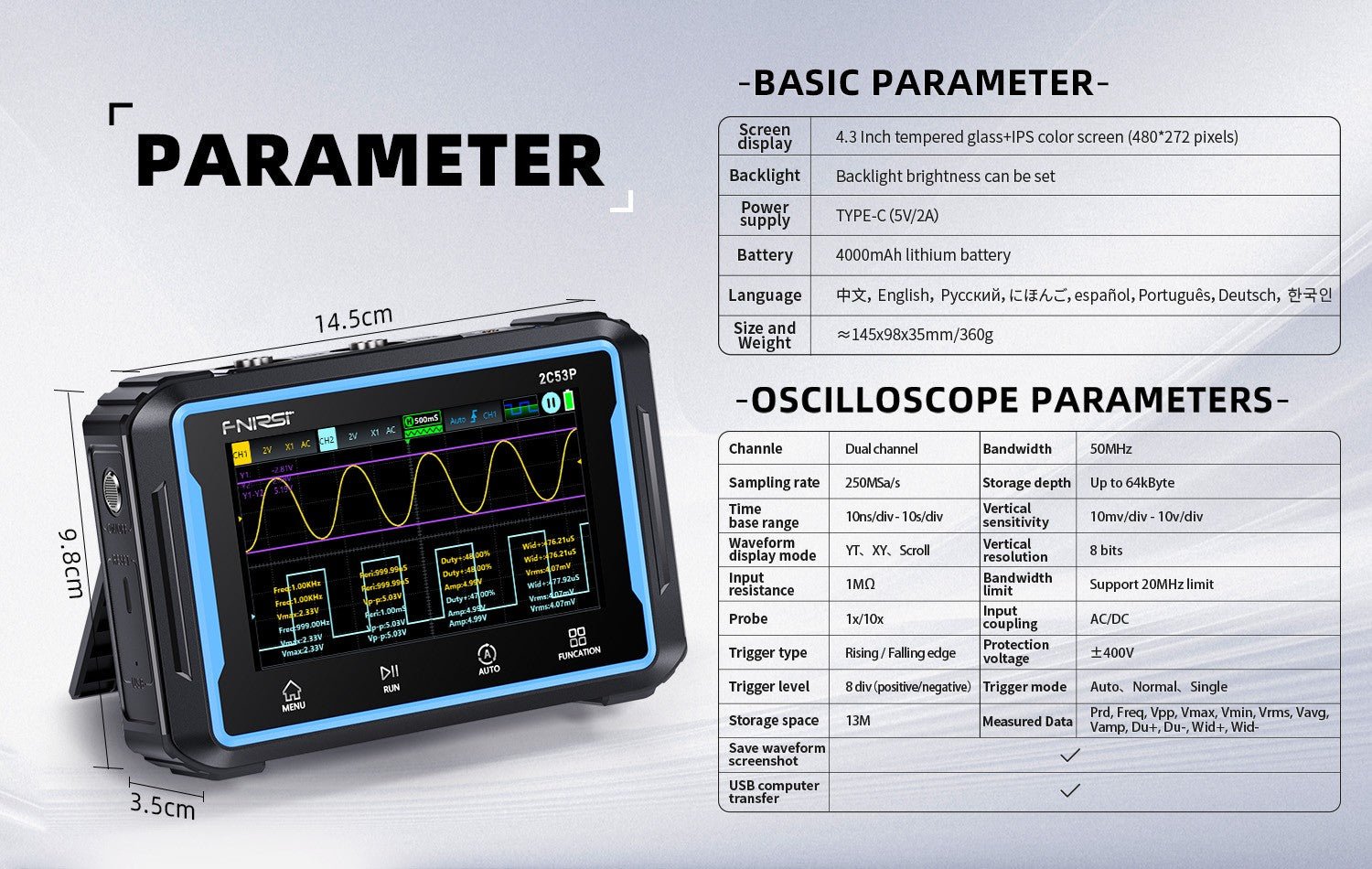

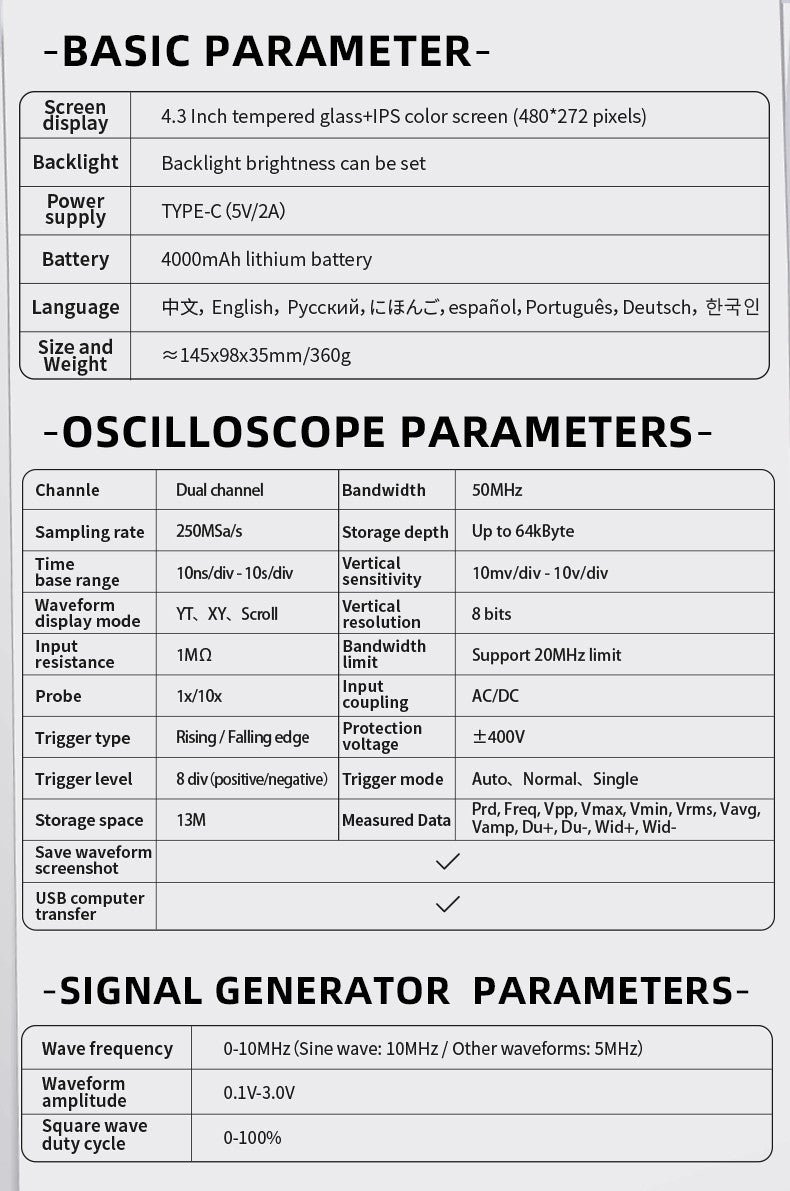

Basic Parameters

Brand

FNIRSI

Model

2C53P

Screen Size & Resolution

4.3 Inch (480*272 pixels)

Screen Material

Surface tempered glass + touch screen made of glass + IPS color screen

Backlight

Backlight brightness can be set

Power Supply

TYPE-C (5V/2A)

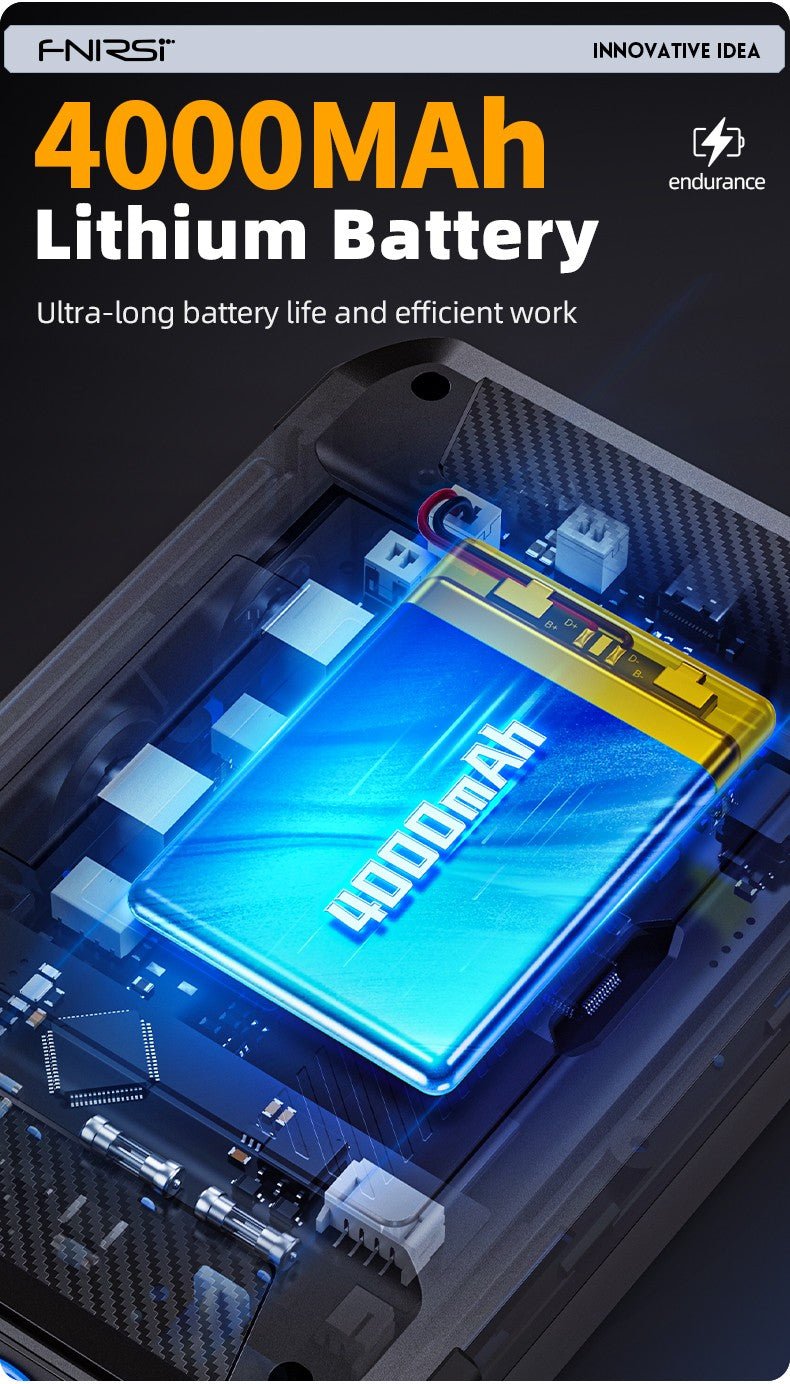

Battery

4000mAh lithium battery

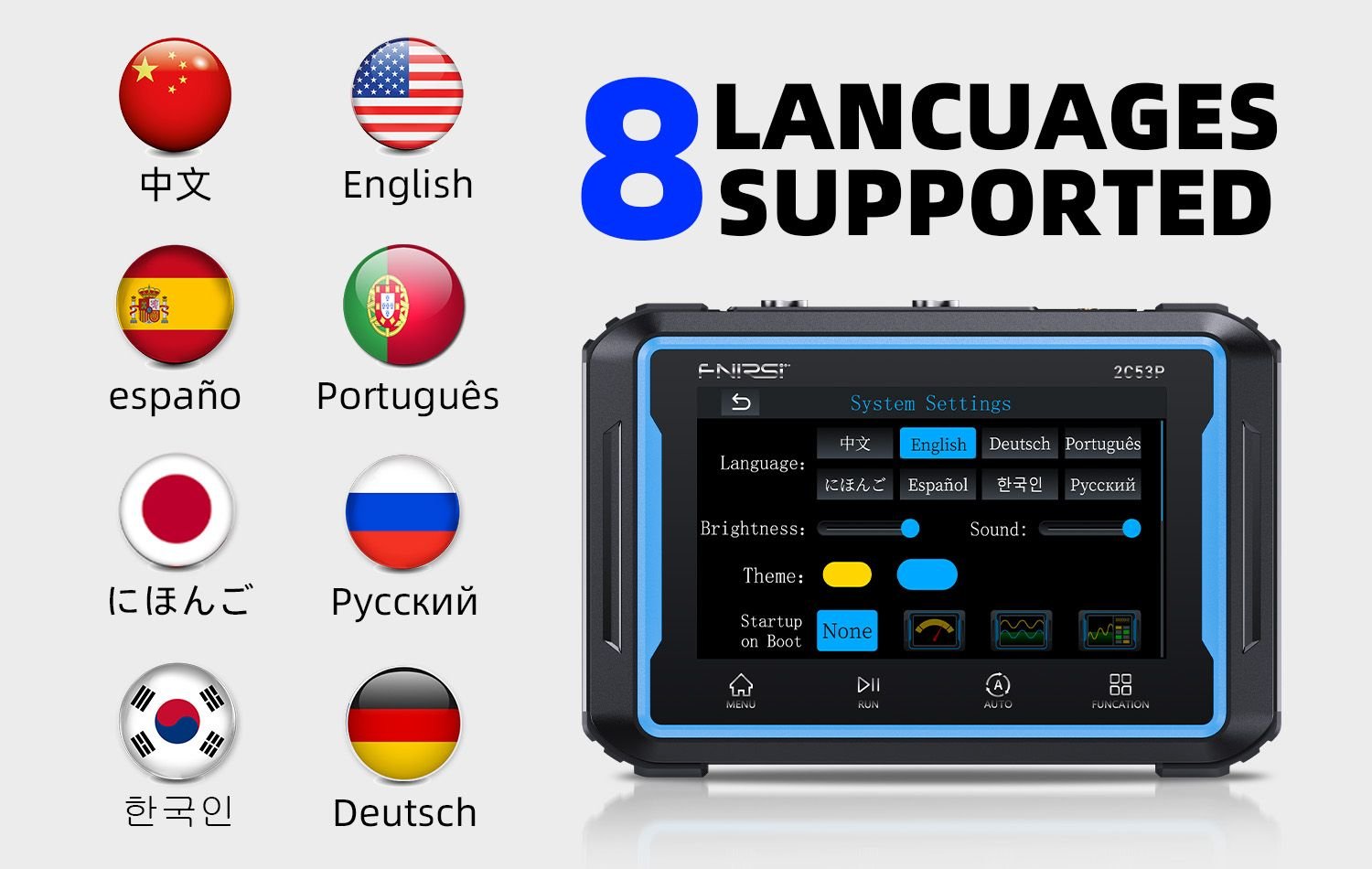

Language

Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인

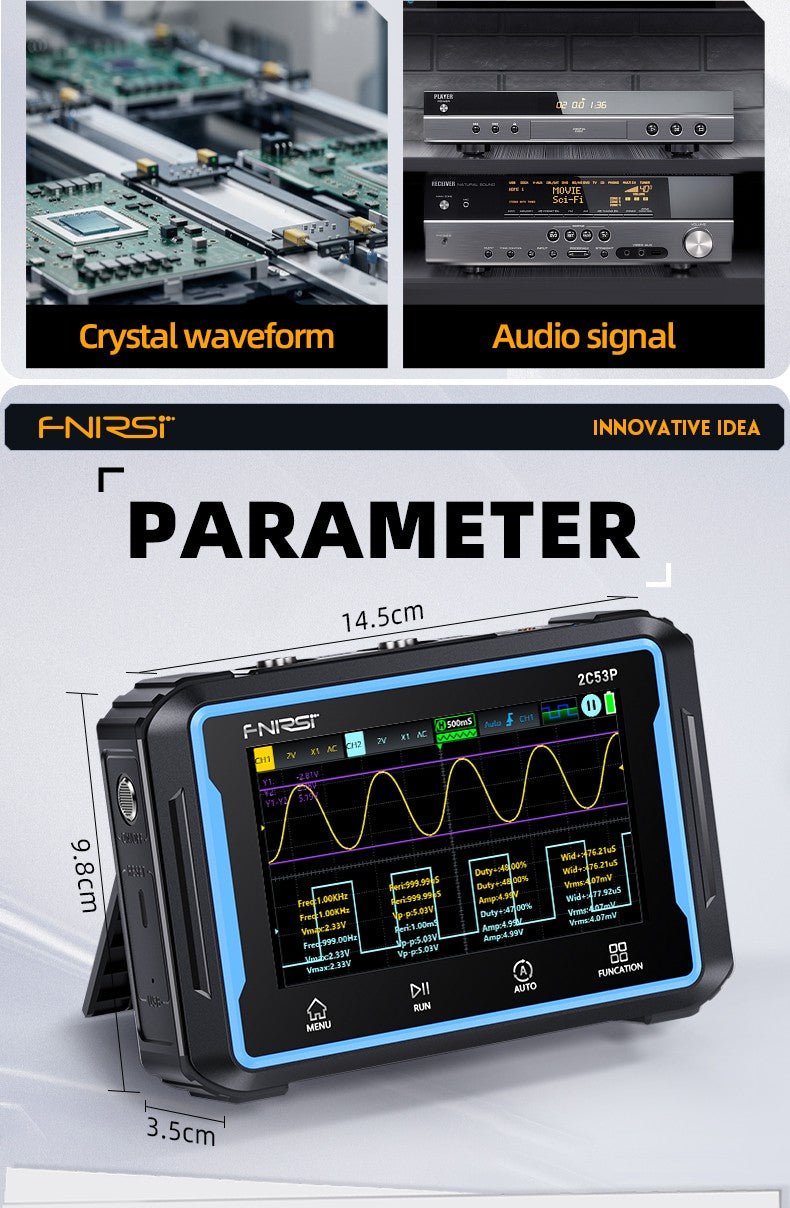

Product Size

≈145x98x35mm

Product Weight

≈360g

Oscilloscope Parameters

Channel

Dual channel

Bandwidth

50MHz

Real-time Sample Rate

250MSa/s

Storage Depth

Up to 64kByte

Input Resistance

1MΩ

Time Base Range

10ns/div – 10s/div

Vertical Sensitivity

10mv/div – 10v/div

Maximum Measured Voltage

±400V

Vertical Resolution

8 bits

Probe

1x/10x

Storage Space

13M

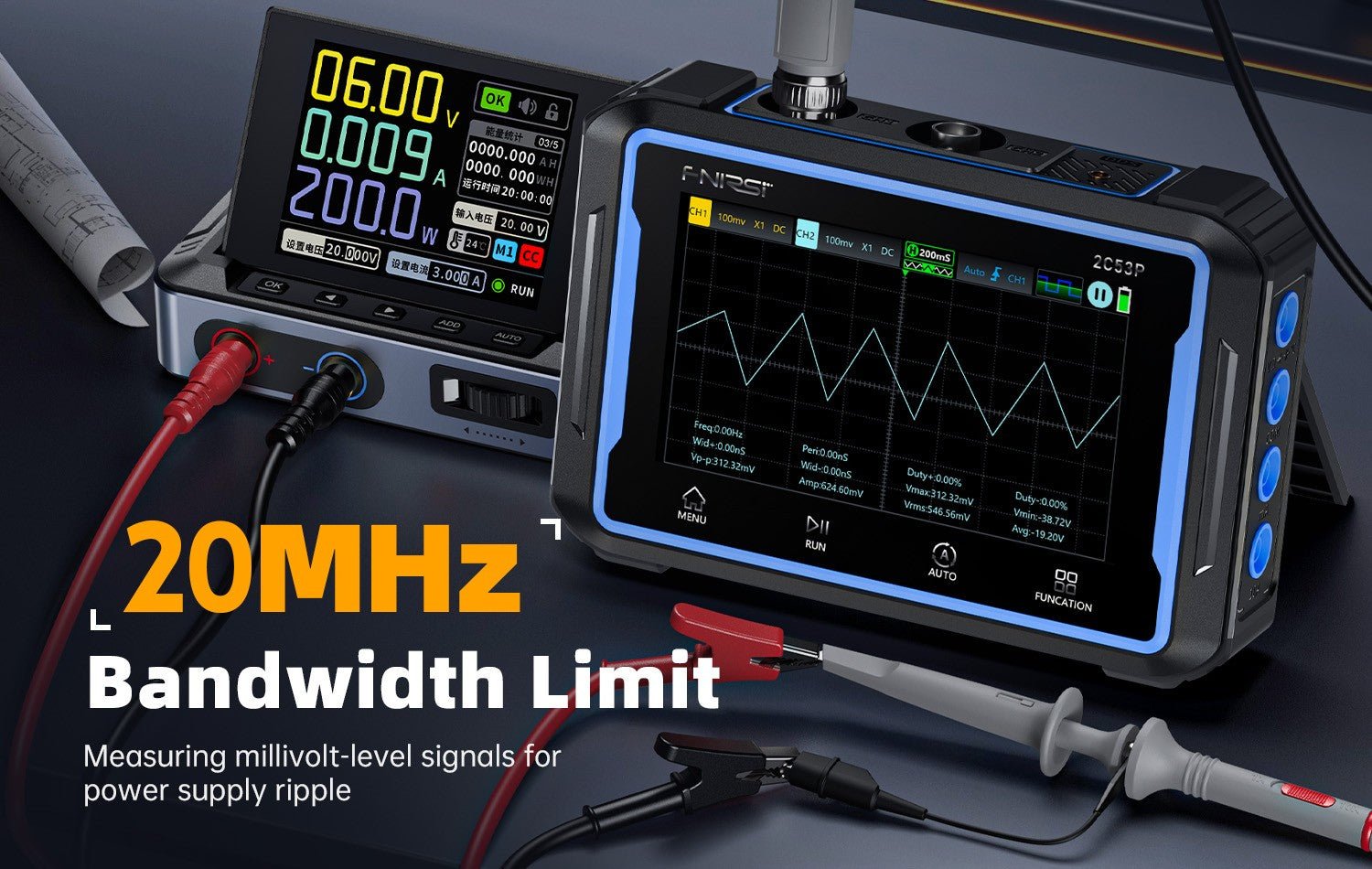

Bandwidth Limit

Support 20MHz limit

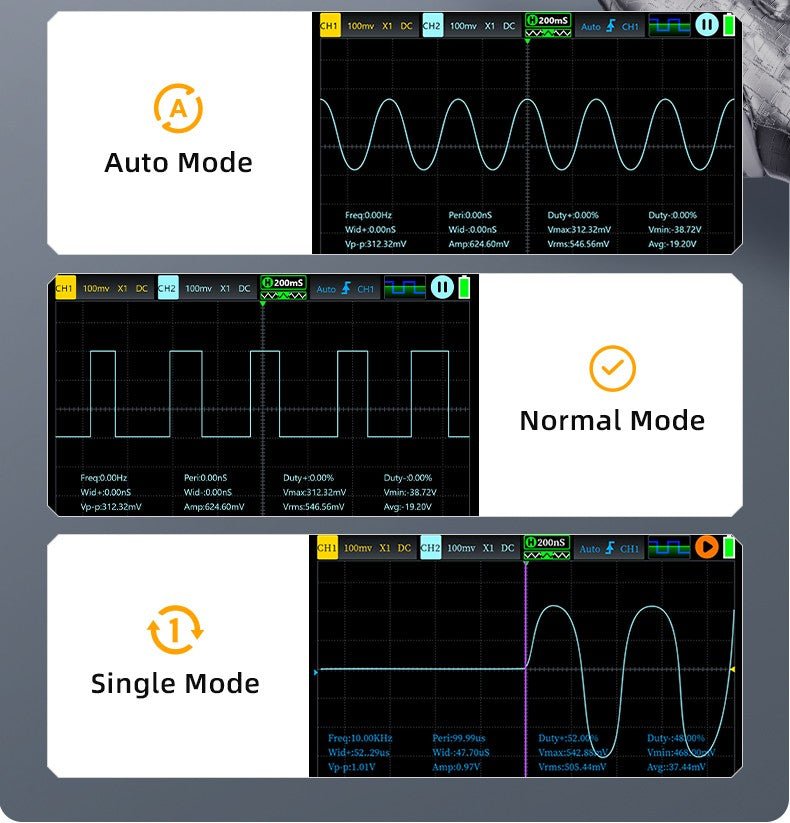

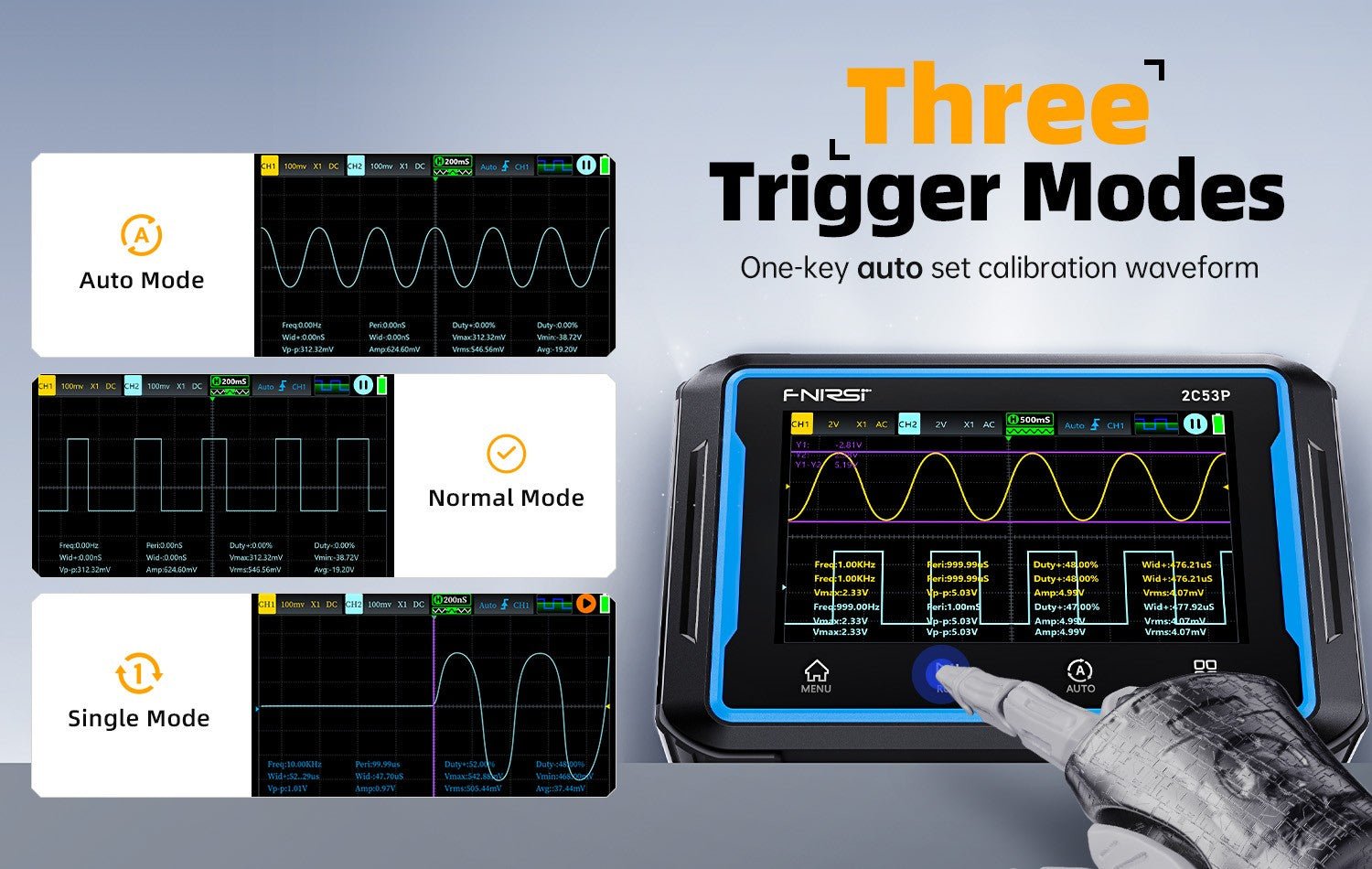

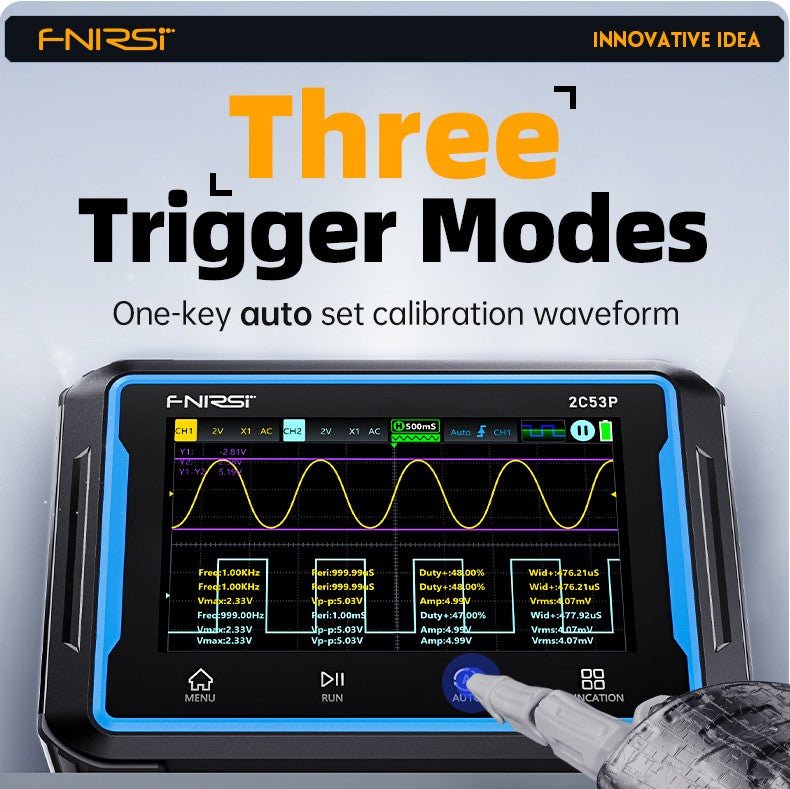

Trigger Mode

AUTO / Normal / Single

Trigger Type

Rising / Falling edge

Trigger Level

8 div (positive/negative)

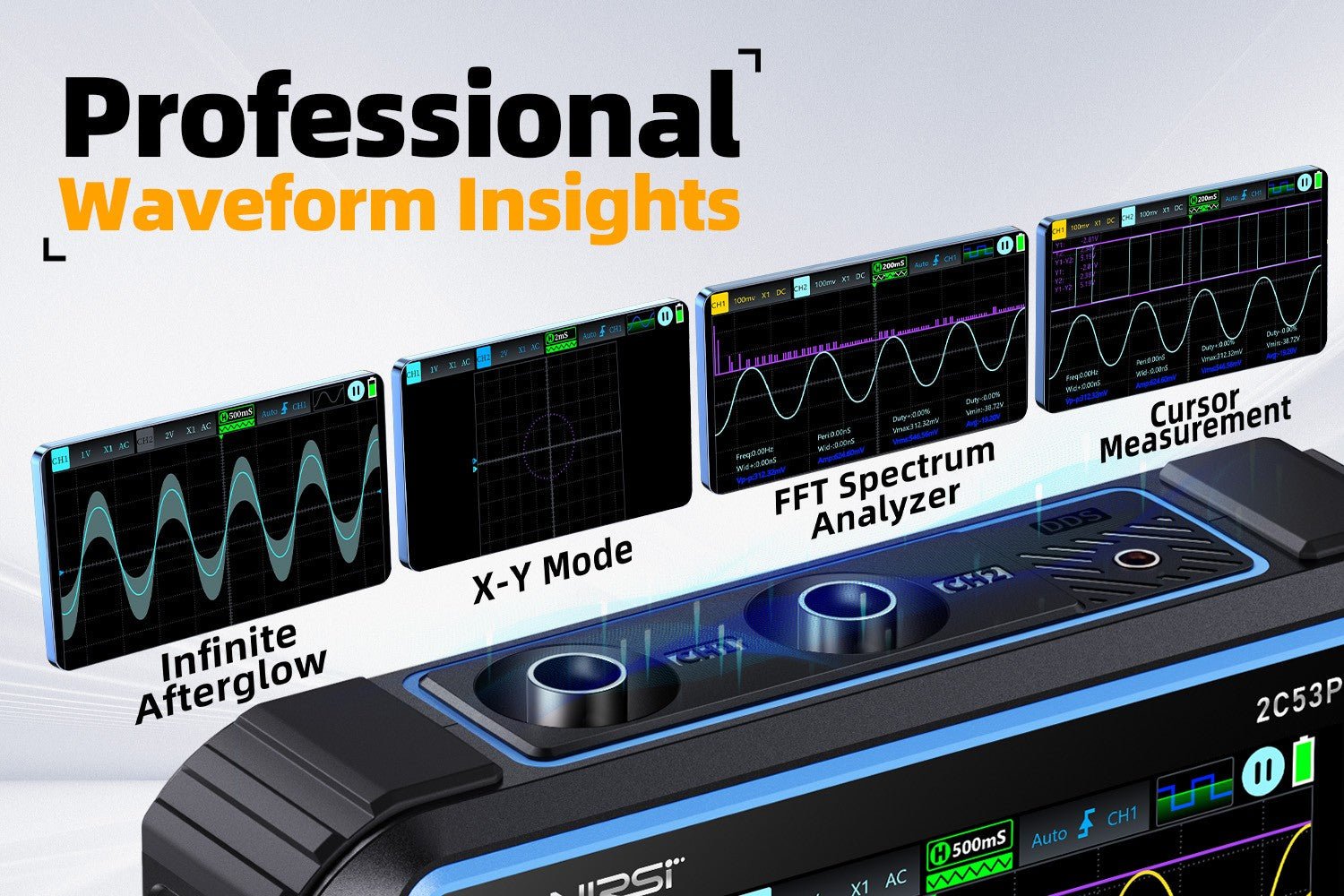

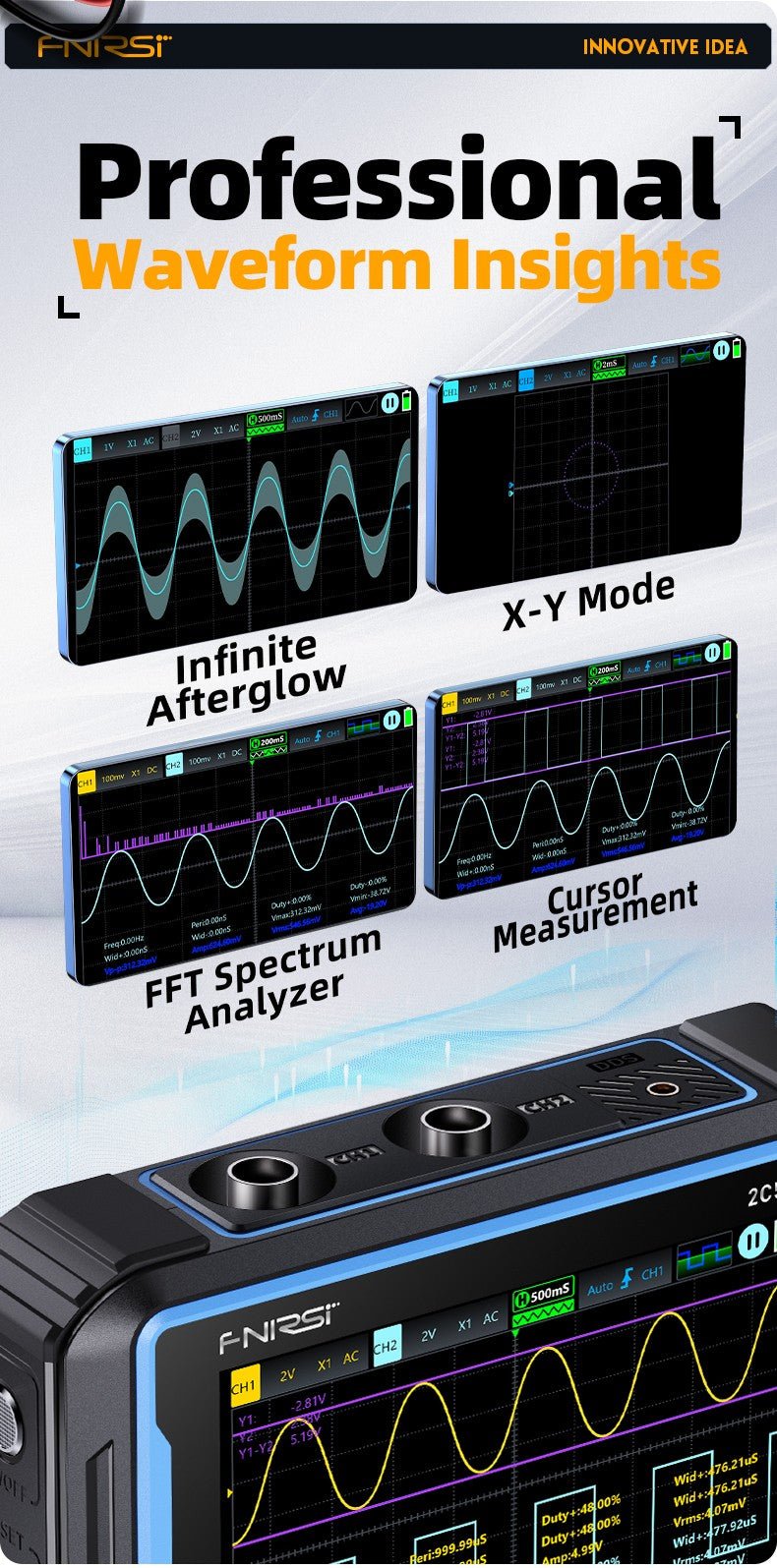

Waveform Display Mode

XY / YT / Scroll

Input Coupling

AC/DC

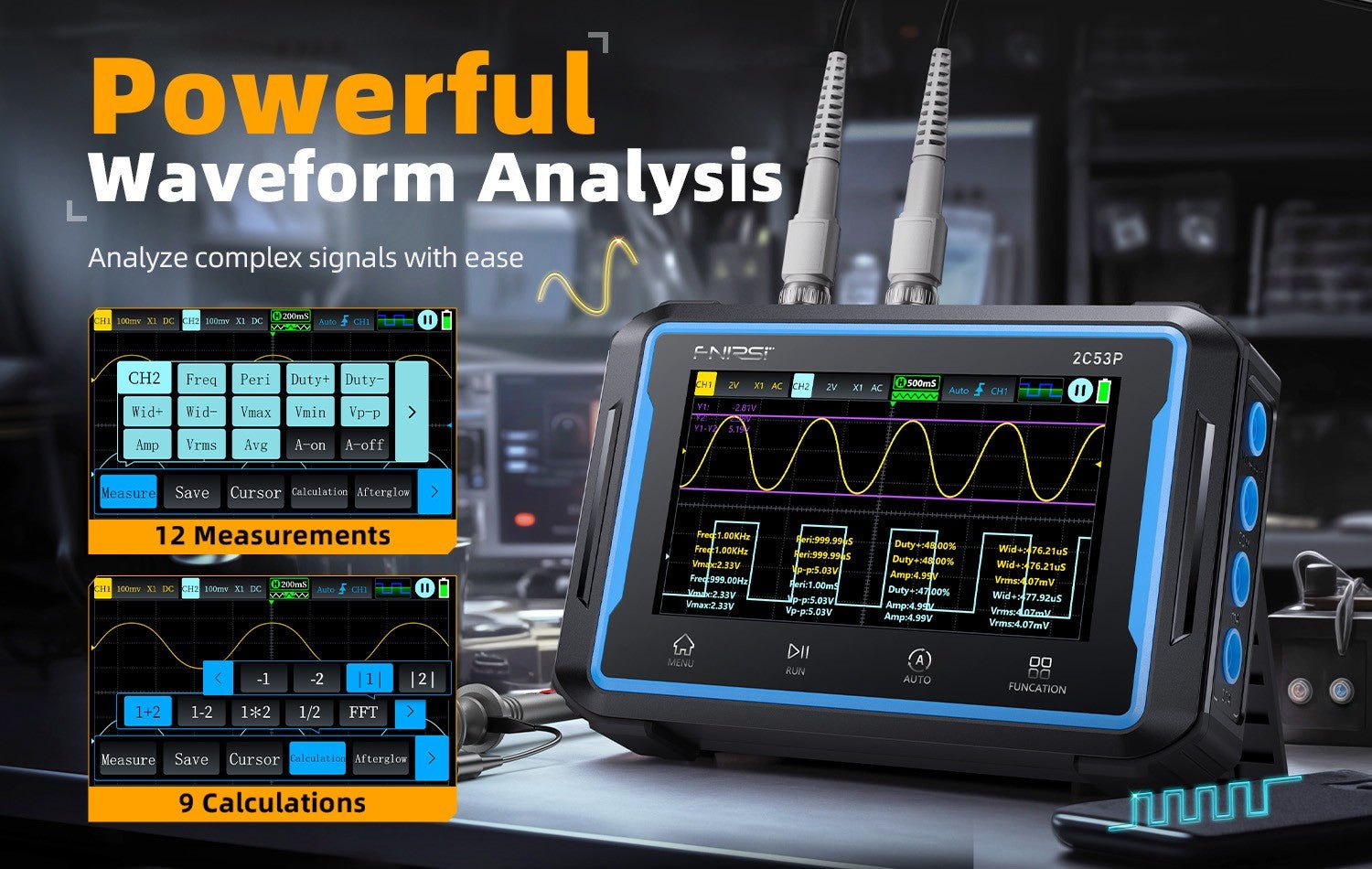

Measured Data

Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-

Math Alculations

1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT

Save Waveform Screenshot

Yes

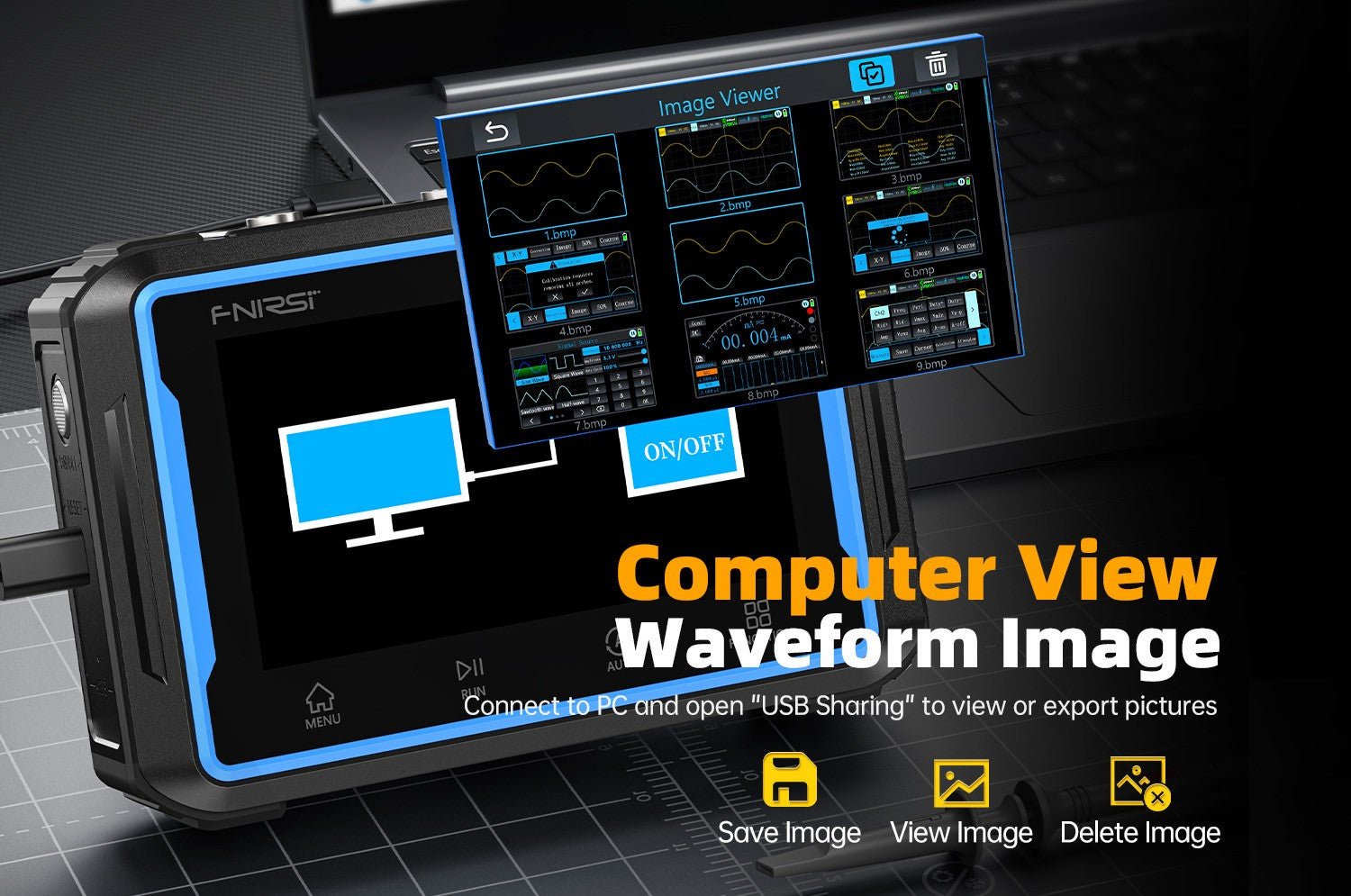

USB Computer Transfer

Yes

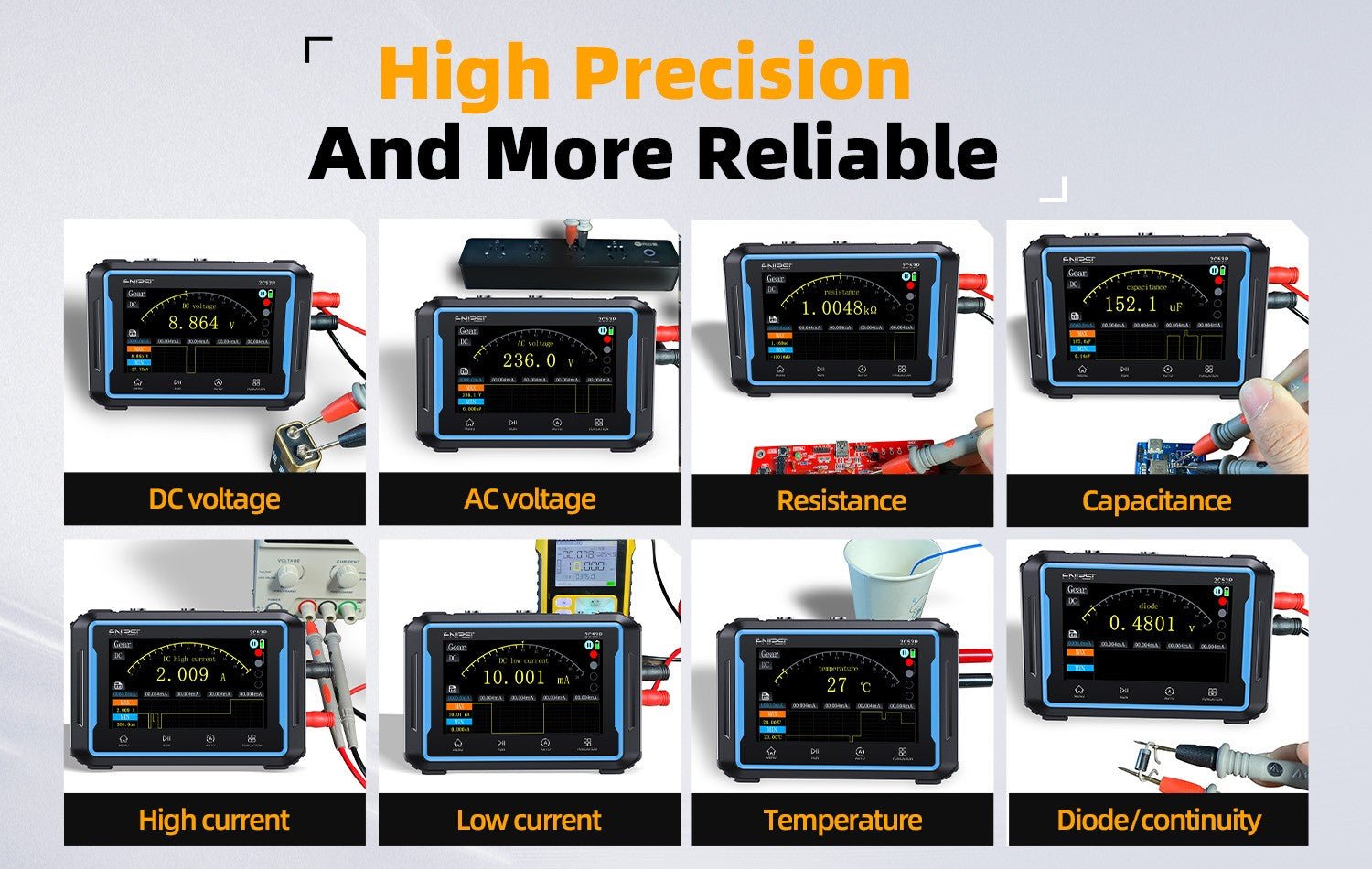

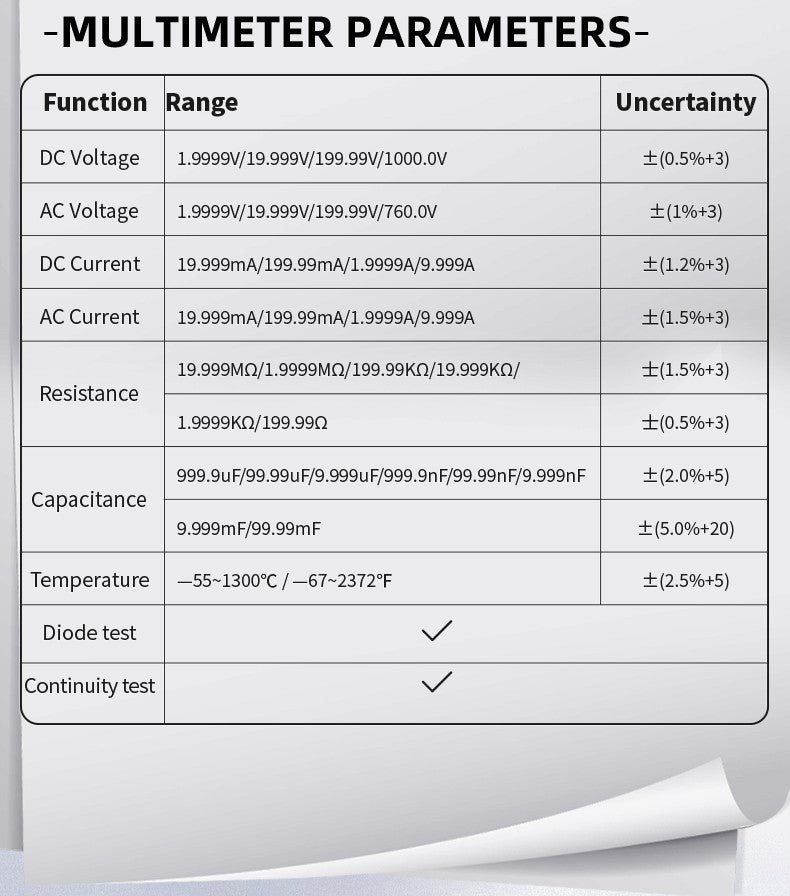

Multimeter Parameters

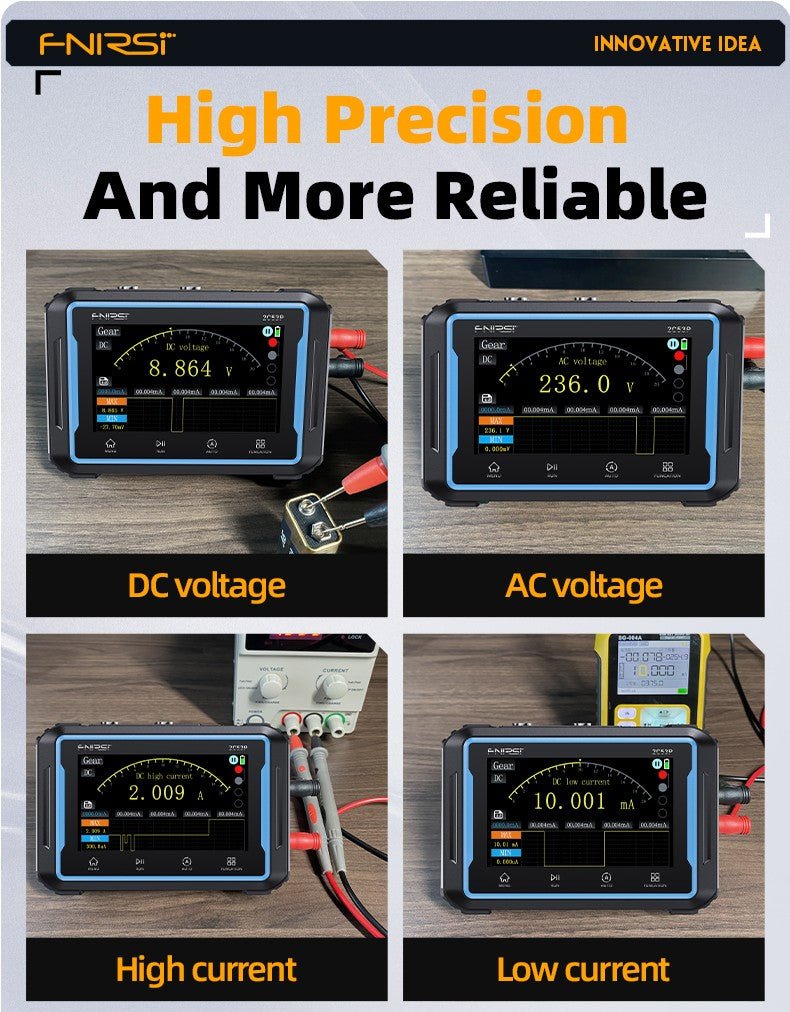

DC Voltage

Range: 1.9999V / 19.999V / 199.99V / 1000.0V
Accuracy: ±(0.5%+3)

AC Voltage

Range: 1.9999V / 19.999V / 199.99V / 760.0V
Accuracy: ±(1%+3)

DC Current

Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.2%+3)

AC Current

Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.5%+3)

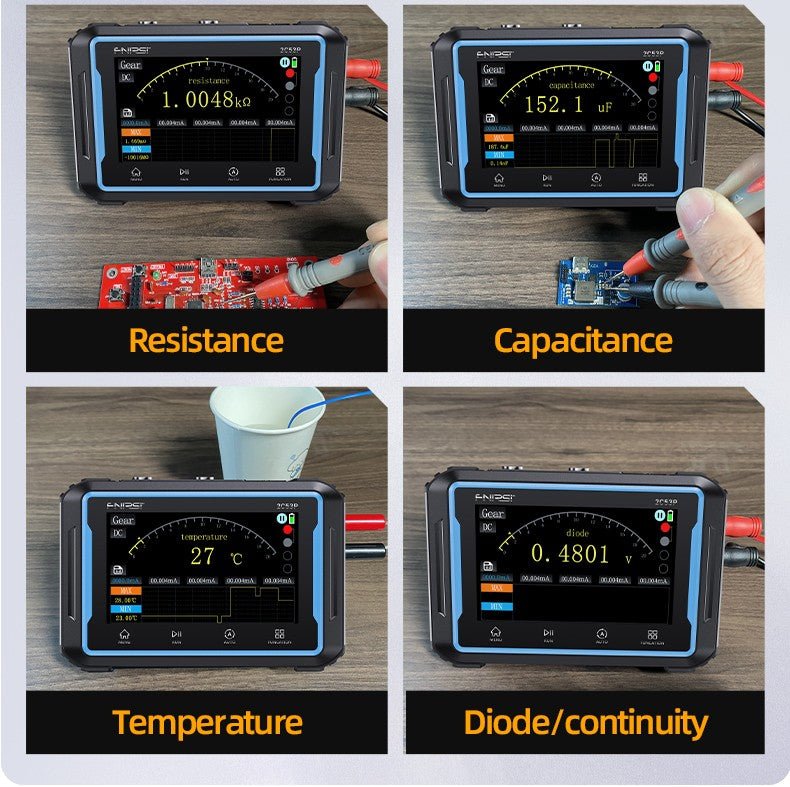

Resistance

① Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Accuracy: ±(1.5%+3)

② Range: 1.9999KΩ / 199.99Ω
Accuracy: ±(0.5%+3)

Capacitance

① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)

② Range: 9.999mF / 99.99mF
Accuracy: ±(5.0%+20)

Temperature

Range: (-55~1300°C) / (-67~2372°F)
Accuracy: ±(2.5%+5)

Diode

Yes

Continuity Test

Yes

Signal Generator Parameters

Channel

Single channe!

Frequency

0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)

Amplitude

0.1-3.0V

Square Wave Duty Cycle

0-100%

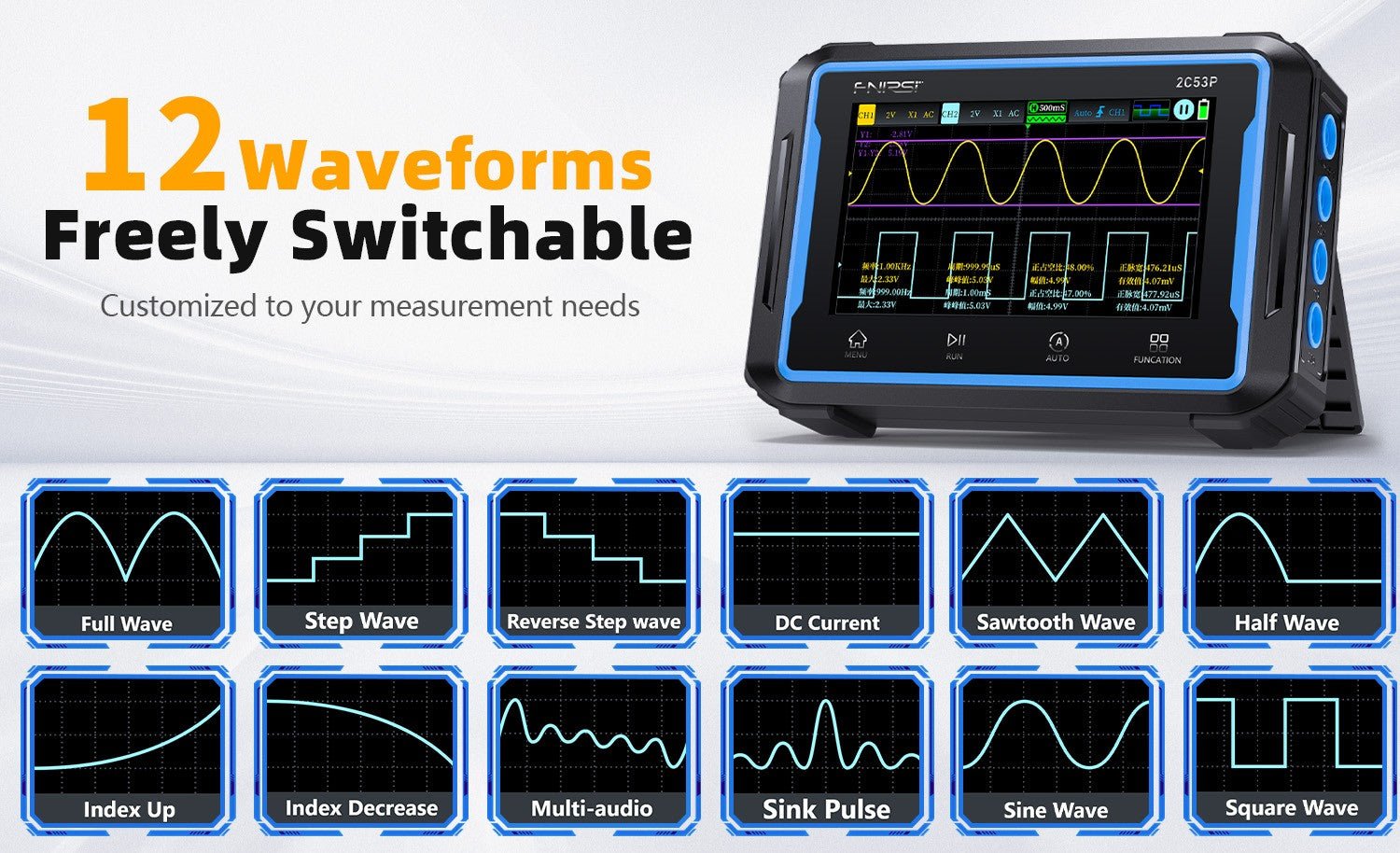

Signal Type

sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
